Since March (roughly), I've I've been developing a web-based game. I had intended to close out this year announcing what I've been working on with an initial playable demo, but not before polishing some of the less usable parts. But that taking longer than expected. Instead, I'm writing about the first month of development, and adding playable versions of the game in its early form into the article. Looking back at my commits, I'm surprised by how much progress I made on the game was in April alone. In that time it went from a rough concept I wanted to explore to something where I could field new ideas.

Which takes me to the concept: this is a game in the genre of Vampire Survivors, Brotato, or Megabonk, where the player has few controls other than movement and they collect level-ups which make their automatic attacks more powerful. In most of these games, you collect more weapons to shoot even more projectiles and kill an obscene number of enemies. My twist on the genre is that instead the player collects party members who orbit them, and levels up each party member individually.

The Ur-Game: Before the Repo

Up until this point, I was using my miniproject approach: having an outline for a small goal and try to make it each day in the form of single-day projects, building everything anew each day instead of continuing off the efforts of the previous day. Project directories were created using my CLI tool, flef. This approach helps bolster fundamentals, memory, and development speed. I highly recommend it!

To get the project off the ground with sprite assets, I used the 32rogues spritesheet pack by Seth on itch.io, which they released as free for personal and commercial use. I'm gradually making my own sprites, but this delightful sprite pack has been instrumental in the creation of this game, and I'm thankful for Seth's work.

I can't find any of my project files from this time, but I recall those builds of the game had to do with state management, entity positioning, and making sprites lower on the screen get drawn above others.

The build stack was dead-simple: the 11ty static site generator would directly copy my JavaScript source code into the build (if you could call it a build). The only need I had was auto-refreshing the page when I modified scripts and 11ty has a dev server which fit the bill. Today, I use Vite instead of 11ty, although the project is still programmed in vanilla JavaScript.

April 3rd: Initial Commit

My initial commit!

In this initial commit, I implemented a character select screen (where the only differences between characters were cosmetic), movement, enemies, attacking, health, and player death.

On the 3rd and 4th, I made about 13 commits. Many of those added stats and changed how how movement worked. I added a main menu with a start button, a system for adding and removing elements to the DOM based on game state, and six characters with different stats.

At this time, the stats were:

• HP
• Attack damage
• Piercing amount
• Range
• Speed
• Invicibility frames
• Attack cooldown
• Hitbox size,
• Attack spread
• Attack projectile size

A balancing issue became apparent from the number of invicibility frames characters would have, where I tried to give some characters more time where they invincible between hits from enemies. This would make some characters able to stand in a group of enemies and take an unreasonable amount of time to die, while others would expire instantly. Getting this to feel fair has been an tug-of-war between game balance and game feel.

Demo:

(click to start. The controls are WASD, or clicking and dragging to move)

Another issue of the early game is that it took place completely in a void. Eventually I would work on this, but early on my focus was mechanical, not aesthetic.

April 7th: Stopping the Mob Train

I'd like to focus on this day in particular, because I think it demonstrates an approach to the development of this game that I'm proud of: using math and relying on random distribution instead of algorithms to solve problems.

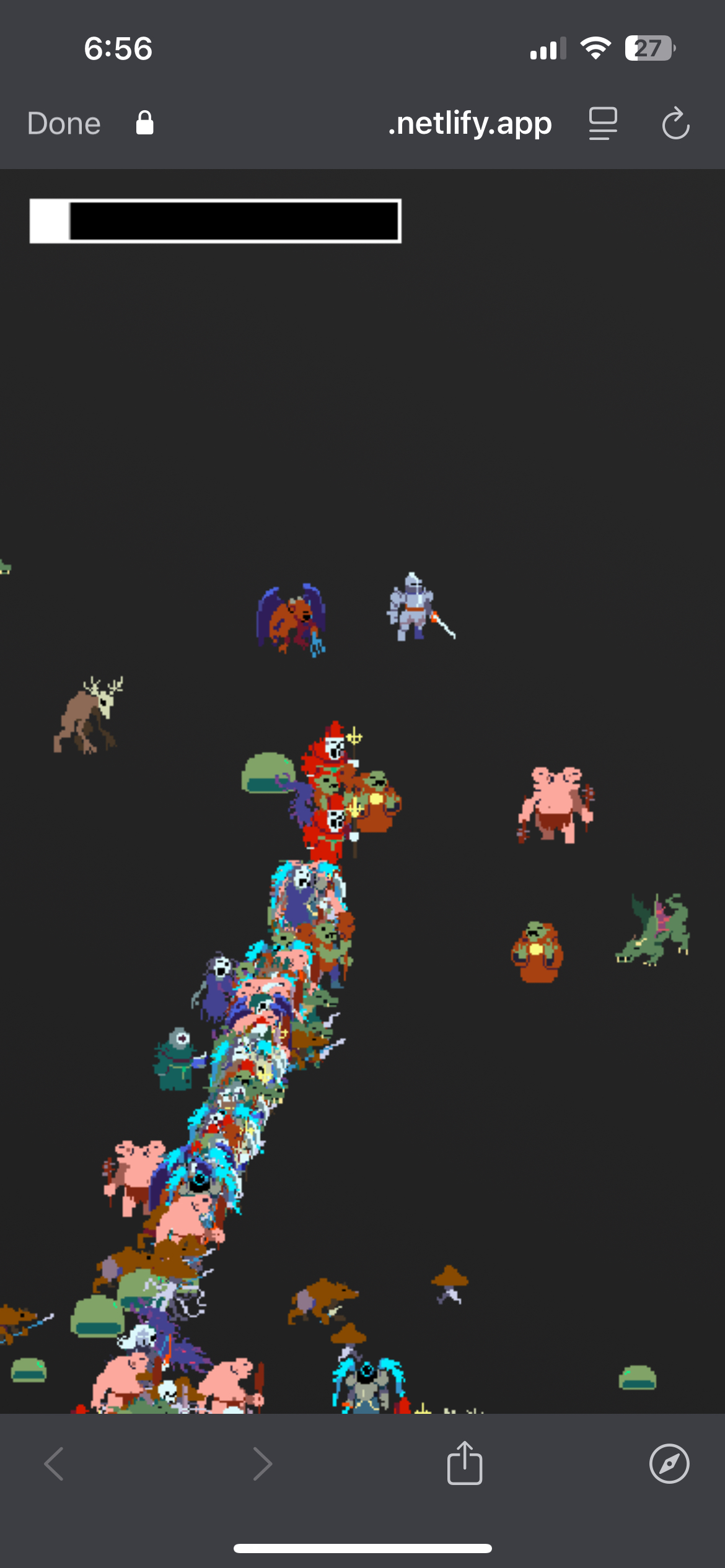

I had a friend of mine play the demo, and she sent me back this screenshot with "we love the mob train."

As delightful as the Mob Train is, it presents a lack of variety. Don't get me wrong, most games in this genre will send enemies right towards you and it's not an issue. My vision for the game, however, is to be a dungeon crawler with tight walls and for enemies to flank the party. The fewer enemies clump together, the better.

So how does one address the Mob Train? Problem A: scaling. If you have each enemy analyzing its own state to calculate their movement on each tick, that adds up across thousands of enemies.

Problem B: uniformity. Enemies which march at you head-on are the simplest to program: just get the direction towards the player and move towards direction by certain distance on each game tick. Easy-peasy! When you replicate this behavior across many enemies, unfortunately, they converge into a single line if you move in one direction.

My solution had two parts: first, making enemies only recalculate their movement on 5% of the game's ticks, where each enemy is put into one of 20 "bins" for which tick in a rotation of 20 they are allowed to recalculate in; then to assign each enemy a random angle to steer their movement away from the player when chasing at a certain distance.

The recalculation throttling looks something like this:

// When the enemy is created, put them into one of twenty "bins".
enemy.recalculation_offset = Math.floor(Math.random() * 20);

// Enemy tick code
if ((tick + enemy.recalculation_offset) % 20 == 0) {
  enemy.recalculateDirection();
}

This is a pattern I use extensively throughout the game, and it allows me to run computationally-expensive entity operations less frequently if I need to improve performance. With randomness over many entities, the bins receive a mostly-even number of entities, helping address the scaling issue, problem A.

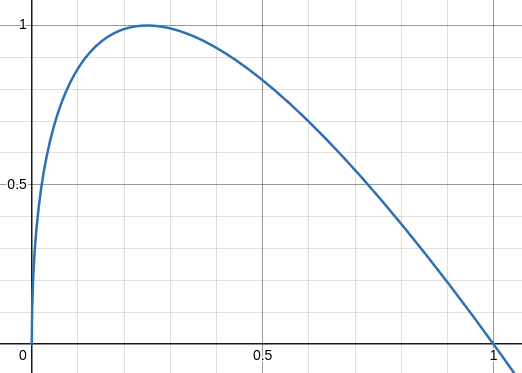

After messing around with the Desmos graphing calculator for a while, I came up with this formula for biasing enemy movement:

$\mathrm{bias}=1-{\left(2x^s-1\right)}^{2f}$

(Here, $s=0.5$ and $f=1$)

Where $x$ is a value between 0 and 1, representing how far within the biasing chase range is, i.e. if a character is 25% of the distance of the biasing range of the player, $x$ would be 0.25 and they would be at the peak of their bias.

// Get a random angle within a given spread for this enemy's bias
enemy.target_bias = Math.PI * (
  (2*Math.random()-1) *
  (enemy.target_bias_spread - enemy.target_bias_min) +
  enemy.target_bias_min
);

// When recalculating direction...
const target_theta  = Math.atan2(rise, run);
const bias_distance = this.character.target_bias_range - target_distance;

if (target_distance > bias_distance) {
  this.dx = Math.cos(target_theta);
  this.dy = Math.sin(target_theta);
  return;
}

// The enemy is inside the biasing range, but outside of the biasing deadzone.

const bias_coefficient = 1 - Math.min(
    bias_distance,
    this.character.target_bias_range
  ) / this.character.target_bias_range;

// Based on the proportional distance of the enemy within the
// biasing range, get an angle to add to the direction
// towards the target. This expression marks the strength of
// the bias on a left-skewed curve, where the enemy having a
// further distance makes them more immediately and strongly
// pulled by the bias, with the bias gradually reducing the
// closer they get to the target.

const bias       = (1 - Math.pow(2, Math.pow(2*bias_coefficient, 0.5)));
const bias_theta = enemy.target_bias * bias;
const direction  = target_theta + bias_theta;

enemy.dx = Math.cos(direction);
enemy.dy = Math.sin(direction);

By initializing enemies with random timing and geometric values, behaviors are varied across enemies, and the code enabling that variety has fewer branches in execution.

I've never received that formal of a mathematical education, but it's been refreshing to take a more math-driven approach than I'm usually accustomed to. Many problems in this game have been solved by calculating weighted sums of vectors. When scaled over randomized distributions of entities I'm surprised at how well the results turn out for the amount of effort they take.

The Gamemaster

The game now had a working name:

Uh, so that would need some work. I dislike naming things, but I'm happy to say that today the game has a name that I think is fun. I'm looking forward to announcing that in the near future!

Gill's Untitled Auto-Shooter Dungeon Game

This all was great, but what was the point? The game needed one very important thing: a goal. Games in this genre tend to be played in runs. You sit down for a half-hour or so and want to get through a set number of levels, or survive for a certain amount of time. The idea I wanted to go for was exploring dungeon floors, but before that, I implemented advancing through levels by killing a certain number of enemies. Today, most levels have an exit to reach, but I've kept the original behavior in the form of 'arena mode' runs. It's been interesting to see how the game feels when the goal changes.

Having multiple levels and goals to progress through requires some sort of apparatus in place which manages runs, their levels, and the state of the game. For this, I came up with a system I call the Gamemaster, as it functions much a GM in tabletop RPGs. Today the Gamemaster creates the levels for the player to play in, tells them when they can level up, presents the player with the option to recruit party members, shows them shops for items, adds enemy spawners that accumulate throughout the run, collects gameplay statistics, and (most importantly for this point in the development of the game) tracks the win conditions for the run.

In between this, I added various other things, such as random map generation and wall collision, predetermined enemy spawners to organize groups of enemies which appear as runs progress, and many small tweaks.

April 18th: Got to the Gimmick!

The idea I wanted to explore, party members, finally started! As you get more party members, they circle around you while you move.

For the motion of party members, this is another point where I took a mathematical approach. For this, I take the current point in time and project it into a circle around the player, like the seconds hand on a clock. This gives a point spinning around the player, and create a vector from it. The party member always moves along that vector, drawing them to a spinning path around the player.

However, with this alone, your party members will blindly run into enemies and die! So, I add in another vector: the retreat vector. To calculate the retreat vector, I get all enemies within a range of the party member, and get each vector towards that enemy. These vectors are all added together, weighted by how close an enemy to the party member. This gives a vector towards the most central position of enemies, and by flipping that in the opposite direction, I have the best direction for running away.

To determine which direction the party member is moving, take the orbit vector and the retreat vector and calculate an average weighted how many enemies are close to the party member. With these two combined, the party member will circle around the player, swerve away from enemies, and run away if there are too many. I got many of the behaviors I wanted with very little branching logic.

April 30th: The first month

By this point, the game was really starting to take shape. The first form of player scaling was accumulating party members, and the next was level-up options. The party members being their own characters was something I was excited to work on. Today, there are more options, including a meta-advancement which improves level-up power in future runs and equippable items that can be swapped between your party members.

The other major thing added by the end of the month was an evaluation of the game's goal: exits to the levels. You could still win by killing a certain number of enemies, but the number was significantly higher. The reason for maintaining that win condition was that sometimes your party would spawn in a room that enemies would funnel into the entrance of, and you'd be stuck. By now, I think I've tweaked the balance of things to the point that this doesn't occur often, but it's a balancing problem which required quite a bit of adjustment.

Also, random distribution of behaviors makes a comeback here! When enemies are spawned, they are assigned a member of your party to chase after. This causes enemies to spread out more as your party wanders, and it becomes another thing the player can maneuver around. And when one of your party members dies, all of the enemies who were chasing them turn towards the remaining party, and you get to see a grouping of enemies suddenly get added to the one you're fighting.

This relates to something at the forefront of what I've been trying to do when working on this game: each change should add variety for the player. It may be a new thing they can do, or maybe a new challenge or behavior for them to deal with. Focusing on variety is a good motivator of change.
